SKU# 13282

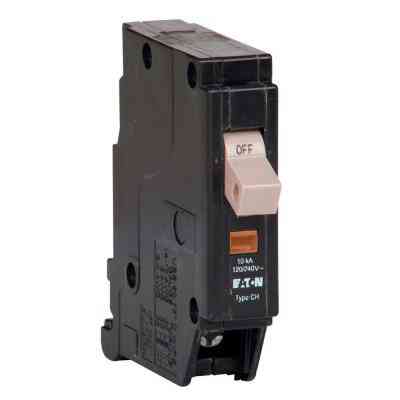

Breaker Cutler Hammer 30 Amp Single Pole CHF130
UPC Code: 786685361864 Manufacturer Part #: CHF130 Breaker-C.Hammer CHF130 30Amp
Store: San Antonio Retail
Disclaimer:
Users can request a quote for this product. Just add the item to your cart and click the Submit Quote button to get your quotation. Prices are subject to change due to market conditions and the website may not always reflect recent price changes. Please call the store to confirm pricing.
Product Overview
The primary function of a circuit breaker is to protect the wire from overheating (referred to as an overload) and fault currents (referred to as short circuits). Circuit breakers replaced fuses because they can be reset. The CHF is a new and improved version of Eaton’s Premium Family of Type CH breakers. The CHF series of breakers will have a Flag that visually confirms “Tripped” status and exclusive “Trip to OFF”/1-Step Reset, which further establishes the CH series of products as “Best in Class”.
Key Features
- Eaton CH family uses a handle for each pole in a two-pole design to directly show contact status, instead of assuming that the 2nd pole has changed position
- Significant handle throw also clearly identifies breaker on-off status
- Improved markings on the breakers now provide a tri-drive terminal screw for ease of installation
- New CHF breakers will fit into every panel that accepts the current type CH product today
Product Specifications
| Actuator Type |
Magnetic Thermal |
| Brand |
Eaton |
| Current Rating |
30 A |
| Height |
3-1/2 in |
| Interrupt Rating |
10 kA |
| Length |
3-1/2 in |
| Model # |
CHF130 |
| Mounting Type |
Plug-In |
| Number of Phases |
1 |
| Number of Poles |
1 |
| Number Of Spaces |
1 |
| Operating Frequency |
50/60 Hz |
| Operating Temperature |
60 to 75 deg C |
| Suitable for |
Type CH Load Centers |
| Trip Type |
Instantaneous |
| Type |
Miniature Type CH |
| UPC |
786685361864 |
| Voltage Rating |
120/240 V |
| Width |
1-1/2 in |
| Wire Size |
14 to 10 14 to 8 AWG |
