SKU# 13157

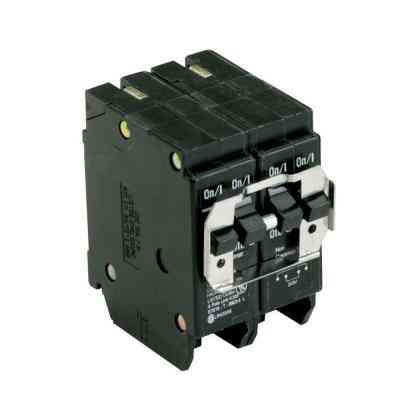

Breaker Westinghouse/Cutler Hammer Quad 20/30 BQ220230
UPC Code: 786676370806 Manufacturer Part #: BQ220230 Breaker-West/Ch Quad 20/30 BQ2Disclaimer:
Users can request a quote for this product. Just add the item to your cart and click the Submit Quote button to get your quotation. Prices are subject to change due to market conditions and the website may not always reflect recent price changes. Please call the store to confirm pricing.
Product Overview
Eaton's type BQ circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). These breakers are designed for use in BR type load centers and should be installed only in panel positions that have notched buss stabs. Also, BQ and BQC circuit breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger, and Bryant.
Key Features
- All duplex and quadplex circuit breakers have the rejection tab feature
- BQ quadplex circuit breakers have independent trip
- Unit features one 2-pole 20 Amp and one 2-pole 30 Amp breaker
- Type BD duplex, BQ and BQC quadplex (CTL) circuit breakers conform to section 384-15 of the latest NEC
- All quadplex circuit breakers require two 1 in. spaces
- All quadplex circuit breakers carry listing for HACR (heating, air conditioning, and refrigeration) applications
Product Specifications
| Actuator Type |
Magnetic Thermal |
| Current Rating |
20/30 A |
| Height |
2.89 in H |
| Interrupt Rating |
10 kA |
| Length |
3.1 in L x |
| Model # |
BQ220230 |
| Mounting Type |
Plug |
| Number of Phases |
1 |
| Number of Poles |
4 |
| Number Of Spaces |
2 |
| Operating Frequency |
50/60 Hz |
| Operating Temperature |
60 to 75 deg C |
| Suitable for |
BR Series Load Centers |
| Terminal Type |
Feed-Thru |
| Type |
Quad Type BQ |
| UPC |
786676370806 |
| Voltage Rating |
120/240 V |
| Width |
0.78 in W x |
| Wire Size |
14 to 4 AWG |
