SKU# 3125
Simpson ABW66RZ Rough Cut 6X6 Adjustable Standoff Post Base with Wind Uplift
UPC Code: 707392365303 Manufacturer Part #: ABW66RZ Simpson-Abw66Rz 6X6 Rgh Adj Po
Store: San Antonio Retail
Disclaimer:
Users can request a quote for this product. Just add the item to your cart and click the Submit Quote button to get your quotation. Prices are subject to change due to market conditions and the website may not always reflect recent price changes. Please call the store to confirm pricing.
Product Overview

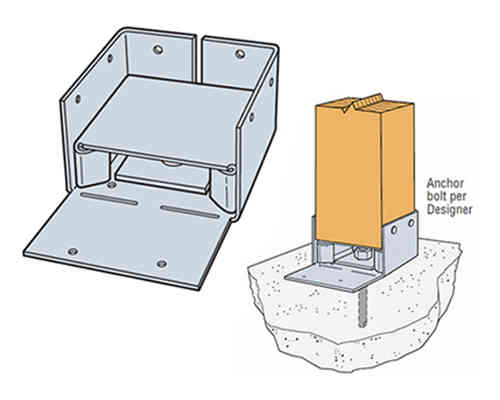

The ABW is designed to attach wooden posts to existing concrete in medium-capacity applications. The built-in 1" standoff of this adjustable post base helps to prevent rot at the end of the post. The ABW has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post base makes a cost-effective option for securing a post to the foundation.
Key Features
- The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
- 1" stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Increased uplift loads for earthquake or wind loading
Product Specifications
| Brand |
Simpson Strong-Tie |
| Coating/Material |
ZMAX |
| Gauge Base |
12 ga |
| Gauge Strap |
14 ga |
| Height |
2-13/16 in |
| Length |
6 in |
| Model # |
ABW66RZ |
| Post Size |
Rough 6x6 |
| Width |
6 in |
