SKU# 10808

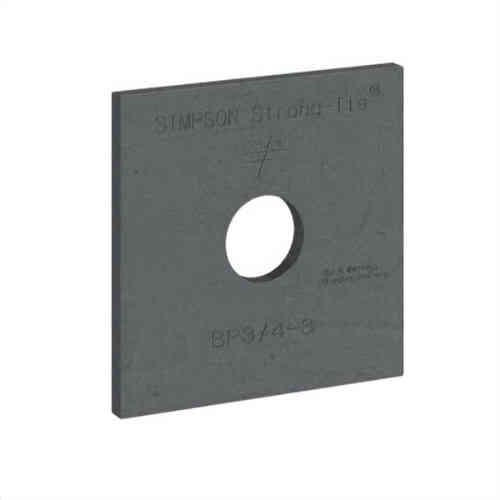

Simpson BP3/4-3 Bearing Plate 3"X3" with 3/4" Bolt Diameter
UPC Code: 707392725800 Manufacturer Part #: BP3/4-3 Simpson-Bp3/4 3/4" 3" Sq. Wa
Store: San Antonio Retail
Disclaimer:
Users can request a quote for this product. Just add the item to your cart and click the Submit Quote button to get your quotation. Prices are subject to change due to market conditions and the website may not always reflect recent price changes. Please call the store to confirm pricing.
Product Overview
The BP is designed to provide a greater bearing surface than standard cut-washers and help distribute the load at critical connections. This bearing plate works by transferring concentrated compressive forces between two structural elements. The BP is available with a hot-dip galvanized (HDG) coating to protect the plate from corrosion when exposed to the elements or certain types of treated lumber.
Key Features
- Replaces standard cut-washers while providing a greater bearing surface
- Sized for most common anchor bolt sizes: 3/8", 1/2", 5/8", 3/4", 7/8" and 1"
- May be ordered HDG for higher corrosion resistance
Product Specifications
| Bolt Diameter |
3/4 in |
| Brand |
Simpson Strong-Tie |
| Coating/Material |
None |
| Gauge |
3 ga |
| Length |
3 in |
| Model # |
BP3/4-3 |
| Width |
3 in |
