SKU# 116004

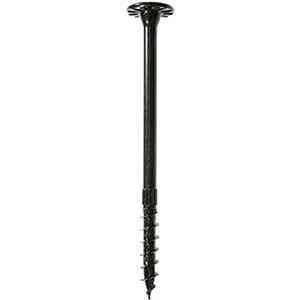

Simpson SDW22500-R50 0.22"X5" Wafer Head Wood Screw T-40 Drive 50 Pc
UPC Code: 707392367505 Simpson-Sdw22500-R50 .22X5" WaDisclaimer:
Users can request a quote for this product. Just add the item to your cart and click the Submit Quote button to get your quotation. Prices are subject to change due to market conditions and the website may not always reflect recent price changes. Please call the store to confirm pricing.
Product Overview
The Strong-Drive SDW EWP-Ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply members made up of engineered wood products. The SDW EWP-Ply installs easily with no predrilling and is available in optimized lengths for fastening 1 3/4" engineered lumber, such as structural composite lumber (SCL). The large, flush head eases the handling of assembled components and simplifies the installation of finishes or structural connectors. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for most common wood framing applications.
Key Features
- Large washer head with nibs provides maximum bearing area; stamped with the Simpson Strong-Tie “?” sign and fastener length for easy identification after installation
- 6-lobe, T40 drive provides positive engagement that makes the screw easy to drive and improves bit life (replacement driver bit — BIT40T-134-R2)
- Low-profile head results in less interference after installation; makes stacking and sliding members easier and allows installation of hardware and finishes to be virtually flush
- Optimal screw lengths provide maximum penetration while preventing the point from protruding out the back of the member
- Specific thread lengths avoids jacking
- High shear values enable wide spacing, saving time and money
- Bold thread design provides superior holding power and cinches fastened members together for consistent installation
- SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
- Retail and mini-bulk packs include one 6-lobe, T40 driver bit; bulk packs include two driver bits
Product Specifications
| Brand |
Simpson Strong-Tie |
| Coating/Material |
E-coat Electrocoating |
| Drive Type |
T40 6-Lobe |
| Head Diameter |
0.760 in |
| Head Type |
Low Profile Head |
| Length |
5 in |
| Model # |
SDW22500-R50 |
| Point Type |
SawTooth Point |
| Shank Diameter |
0.220 in |
| Thread Length |
1-1/2 in |
